It’s 2 a.m. on a gas-lifted oil well somewhere in the Permian, and the well is “heading” — surging, choking, surging again, like a diver who can’t settle on a breathing rhythm. The production engineer on call pulls up a performance curve she built in a spreadsheet three weeks ago, squints at a gas injection rate that no longer matches reality, and makes her best guess. By the time she adjusts the choke on the gas lift valve, the well has already cost the lease a few barrels of deferred oil. This is the problem AI gas lift optimization was built to solve, and it’s worth understanding exactly how it works before you trust it with your wells.
What Gas Lift Optimization Actually Means
Gas lift works on a simple idea: inject high-pressure gas into the production tubing to lighten the fluid column, reduce the effective bottomhole pressure, and let reservoir pressure do more of the lifting work. The hard part is that the relationship between injection gas rate and oil production isn’t linear — it’s a curve with a clear optimum, and that optimum moves constantly as reservoir pressure declines, water cut rises, and tubing conditions change.
Push too little gas and the well can’t unload liquids efficiently. Push too much and you waste compression horsepower while actually increasing friction losses in the tubing, which can reduce oil rate past a certain point. Most operators built this curve once, in a nodal analysis package, and then let it go stale for months.
Why the Performance Curve Goes Stale
A gas lift performance curve plots oil rate against injection gas rate at a fixed flowing bottomhole pressure. The chart below shows the shape every artificial lift engineer recognizes: a steep rise, a rounded peak, and a slow decline as friction losses eat into the gains.
The curve in a spreadsheet is a snapshot. The well is a moving target. Reservoir pressure depletes, GOR shifts, and the tubing itself starts carrying scale or paraffin that changes the friction term in the Hagedorn-Brown or Beggs-Brill multiphase flow correlations used to build the curve in the first place. Within weeks, the “optimal” injection rate on the chart is no longer optimal — it’s just outdated.
How an AI Workflow Keeps the Curve Current

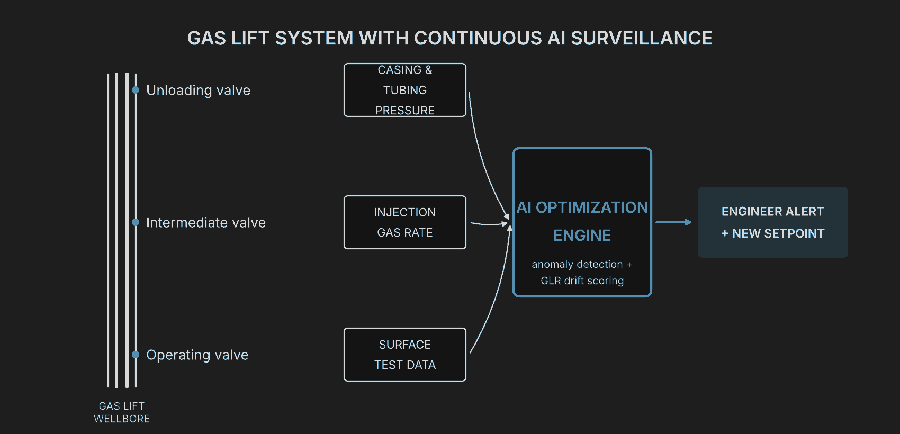

This is where AI-driven gas lift optimization earns its keep. Instead of a static nodal model, the system ingests continuous SCADA data — casing pressure, tubing pressure, injection gas rate, and surface temperature — alongside periodic well test results, and retrains its model of the well’s current IPR and lift performance on a rolling basis.
The practical loop looks like this:
- Casing and tubing pressure, injection rate, and choke position stream in from SCADA every few seconds.
- A machine learning model — often a gradient-boosted regressor or a physics-informed neural network constrained by the governing multiphase flow equations — estimates the current performance curve rather than assuming the last nodal run still holds.
- The system flags wells operating more than a defined margin below their estimated optimum and recommends a new injection setpoint.
- An engineer reviews and approves the change, or in more mature deployments, a closed-loop controller nudges the gas lift valve automatically within guardrails.
Vendors like Ambyint and SLB‘s artificial lift optimization line both run variations of this pattern: continuous edge analytics on the well, cloud-side model retraining, and a recommendation or auto-adjust layer the field team trusts because it shows its reasoning, not just a number.
What the Dashboard Actually Shows You
The output that matters to an engineer isn’t a machine learning score — it’s a clear, well-by-well view of where the gas is going and what it’s buying you.
A good dashboard surfaces three things at a glance: the well’s current position relative to its live-estimated optimum, the confidence of that estimate (based on how much recent, varied data the model has seen), and a ranked list of wells where closing the gap is worth the most incremental oil. That ranking is what turns this from a nice visualization into a worklist a lease operator can act on during a single morning round.
How Do You Automate This Without Buying a Platform?
Not every operator is ready for a full artificial-lift SaaS contract. A smaller team can approximate the same loop with open tools: pull SCADA historian data into a pandas dataframe on a schedule, use petropt for the underlying IPR and multiphase flow calculations, and retrain a simple regression model weekly in a Jupyter notebook. A tool like Make or n8n can schedule the pull, trigger the Python job, and push flagged wells into a Teams or email alert — a lightweight version of the commercial workflow that costs almost nothing but engineering time.
What Should an Engineer Watch For?
Three failure modes show up repeatedly in the field:
- Stale well tests. The model’s estimate of the IPR is only as good as the last reliable well test. If tests are months old or the gauge was reading wrong, the “optimum” the AI recommends can be confidently wrong.
- Slug flow misread as instability. Intermittent gas lift wells naturally cycle; a model trained mostly on continuous-flow wells can mistake normal slugging for a fault and recommend unnecessary rate changes.
- Compression constraints ignored. A per-well optimizer can recommend injection increases across several wells that collectively exceed what the compressor station can actually deliver. The field-level allocation still needs a human — or a network-level optimizer — in the loop.
None of this makes the AI layer less valuable — it just means the performance curve was never the whole story, and now at least it’s a current one. For the next piece of the artificial lift puzzle, the ESP TDH calculation walks through the equivalent sizing problem for electric submersible pumps, and AI liquid loading prediction covers the gas-well cousin of this same stale-curve problem.
